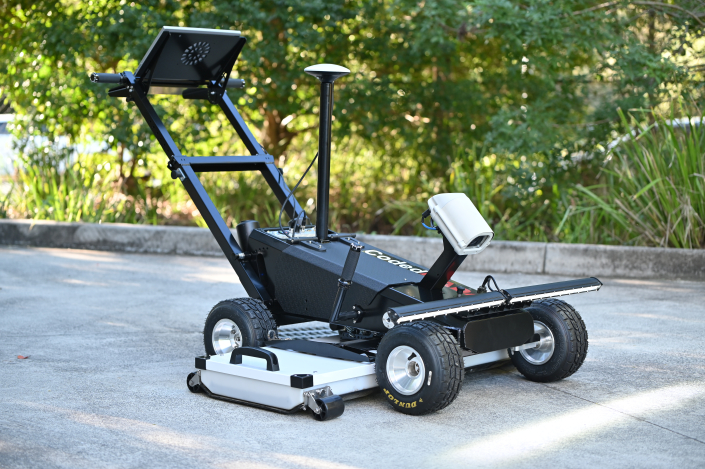

Lynx

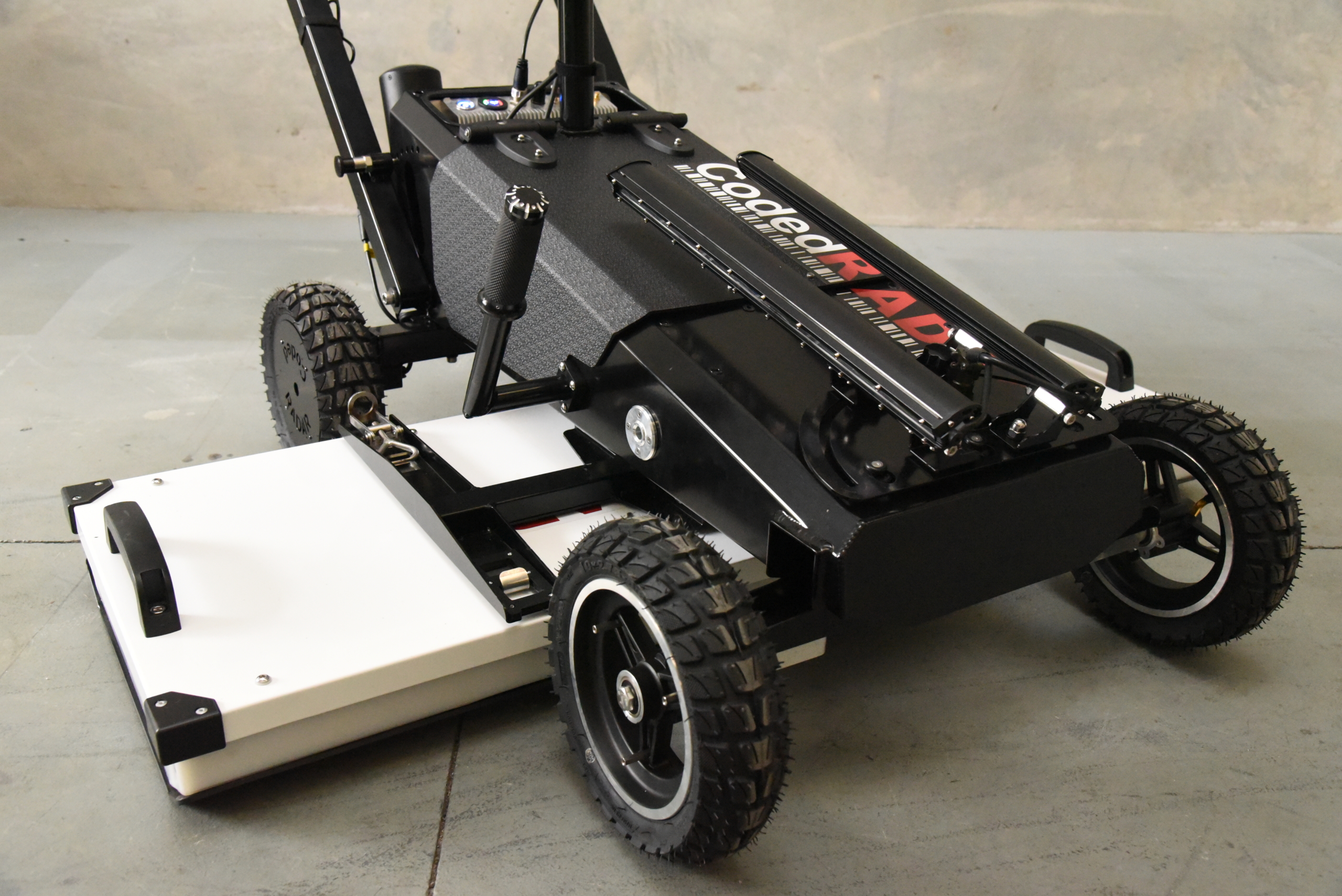

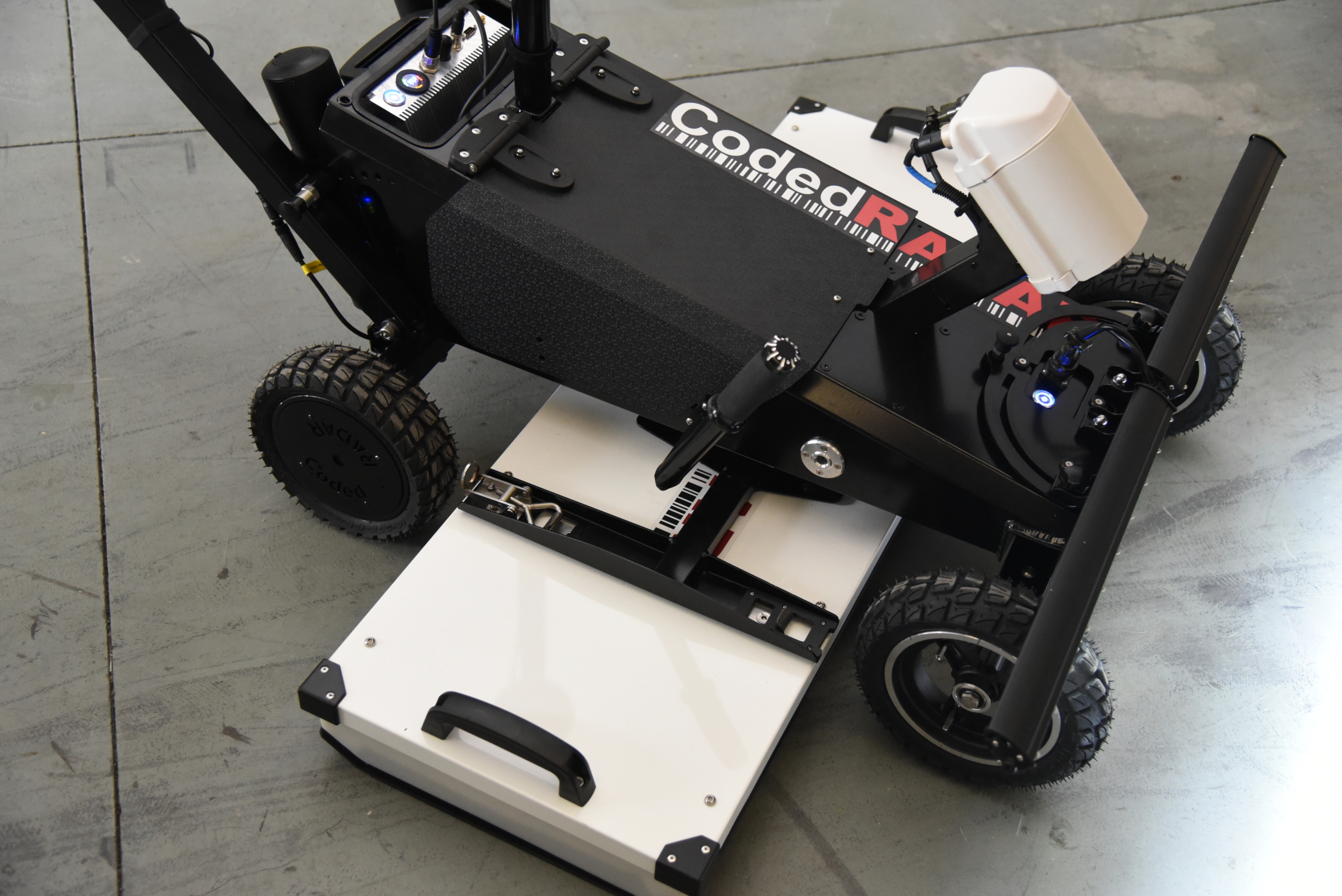

Push-cart surface & subsurface measurement platform

Features:

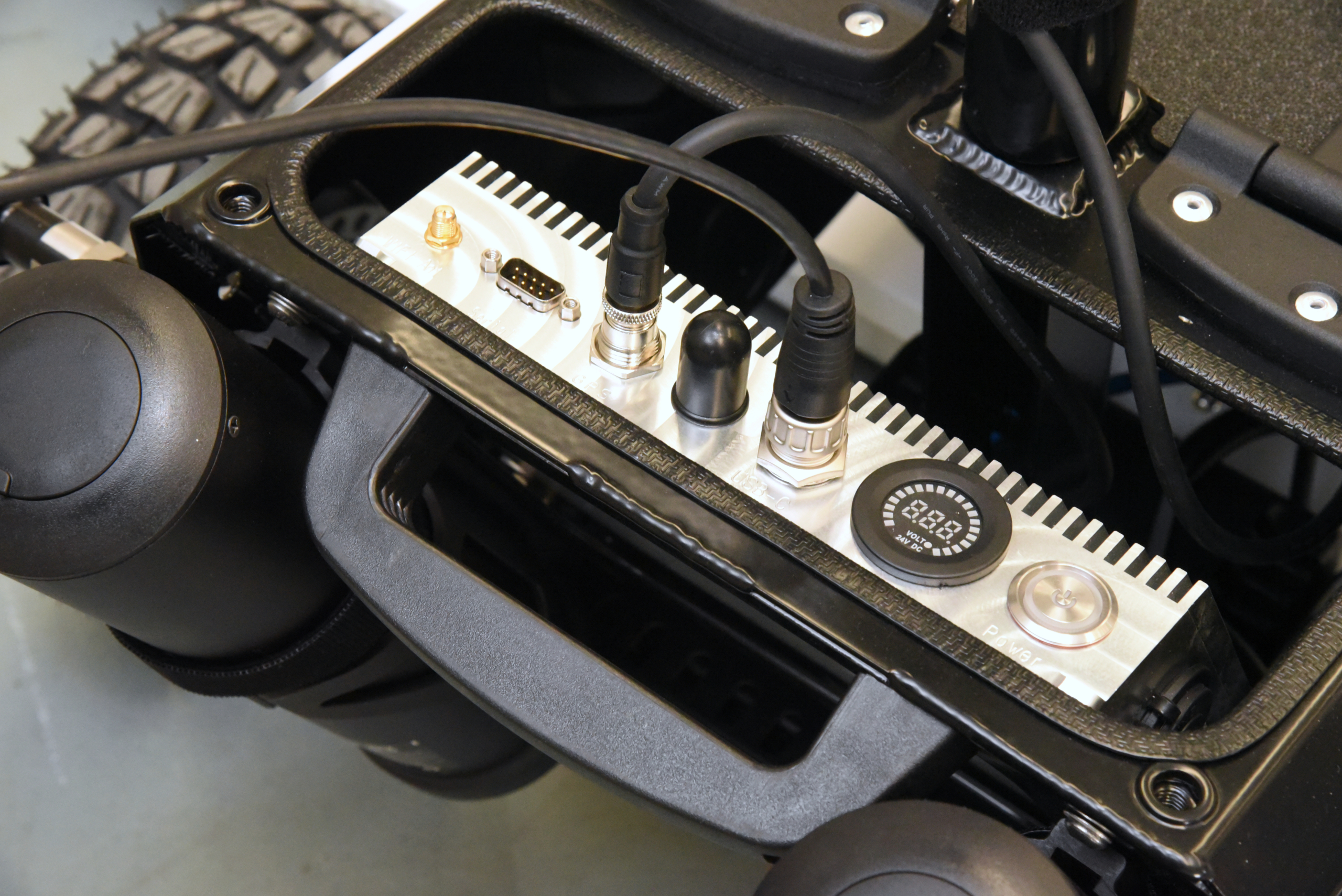

  • NM-GPR V3.0 Standard (2 Tx + 4 Rx) digitiser
  • Dual-polarised (16 V-V + 16 H-H) array
  • Single (1200MHz) or multi-frequency (600+1200MHz) antennas
  • Penetrate up to approx. 4.0 m (standard) or 5.0 m (multi) (material dependent)
  • Digitiser can control syncronised surface and area cameras

  • Compact system with inbuilt PC

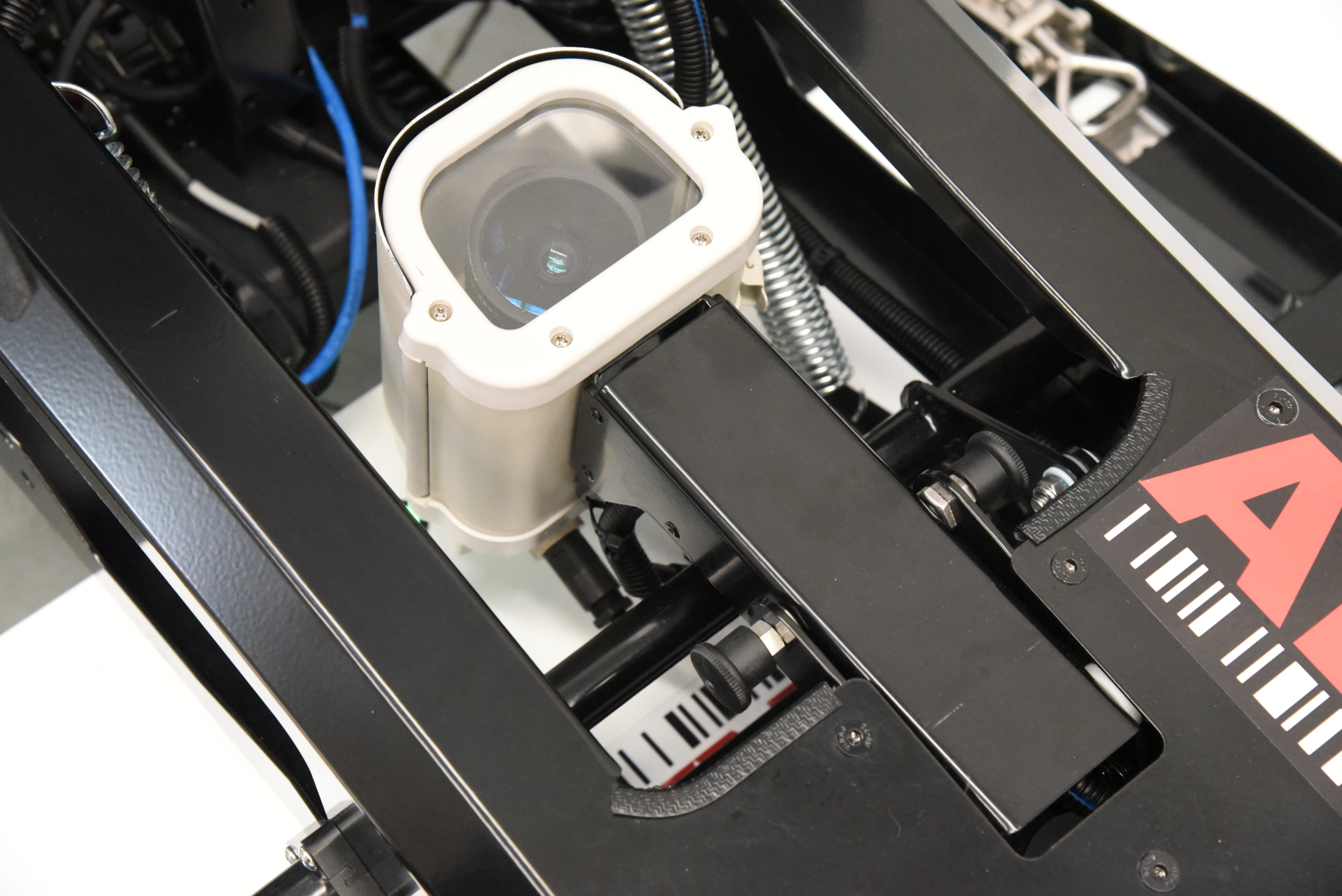

  • Surface imaging camera that stows for transport

123
  • Standard configuration:

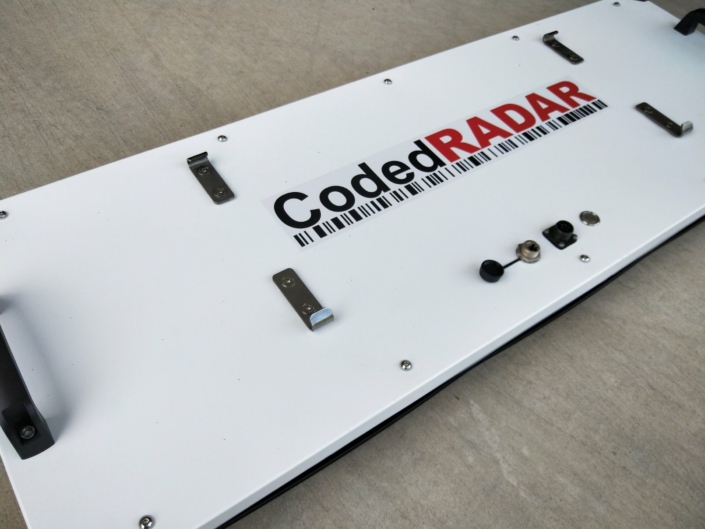

    • 3D NM-GPR array (incl. digitiser)

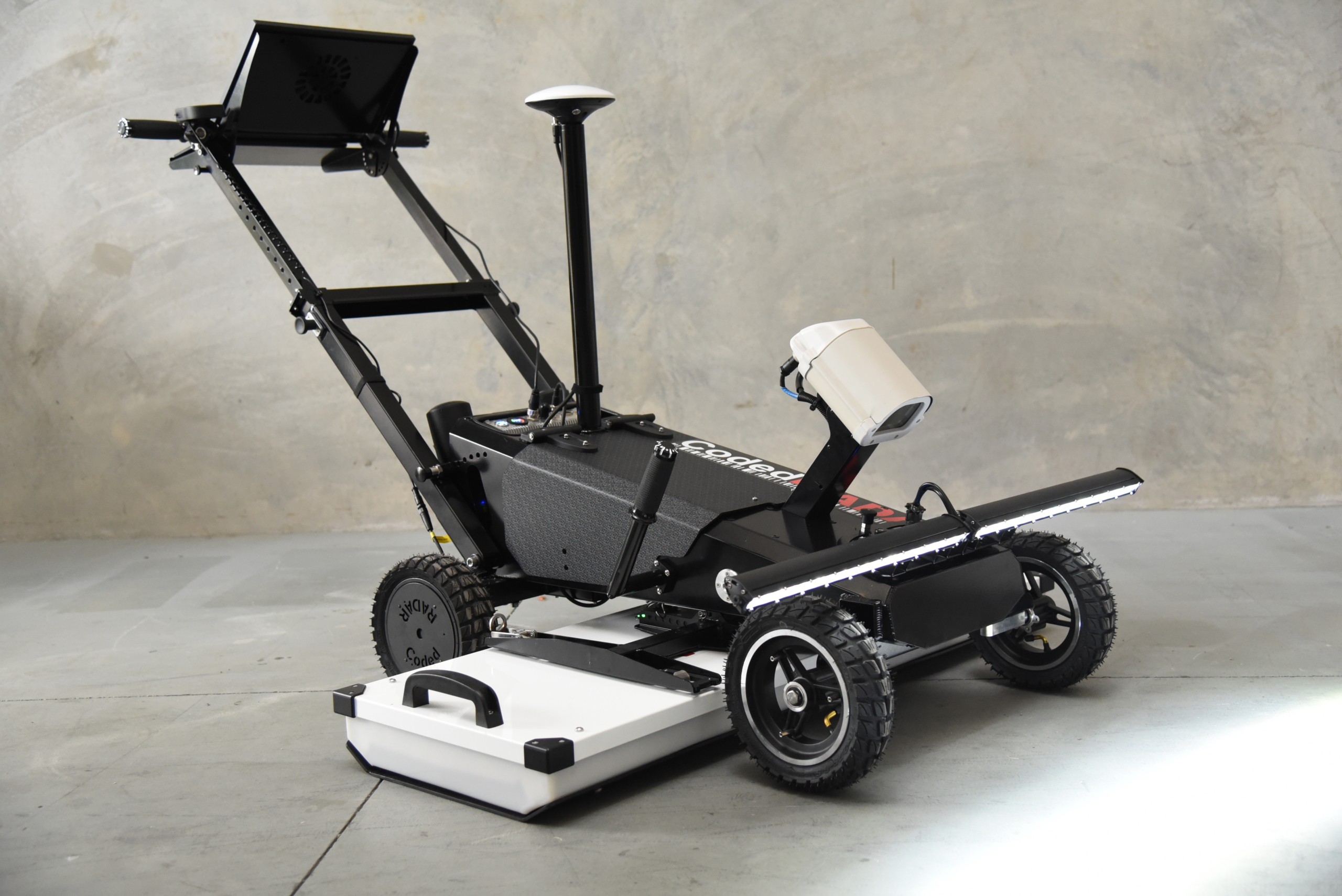

    • Rugged lightweight aluminium pushcart with integrated data PC
    • RTK-GNSS, grid or robotic total station positioning
    • Optional sensors:

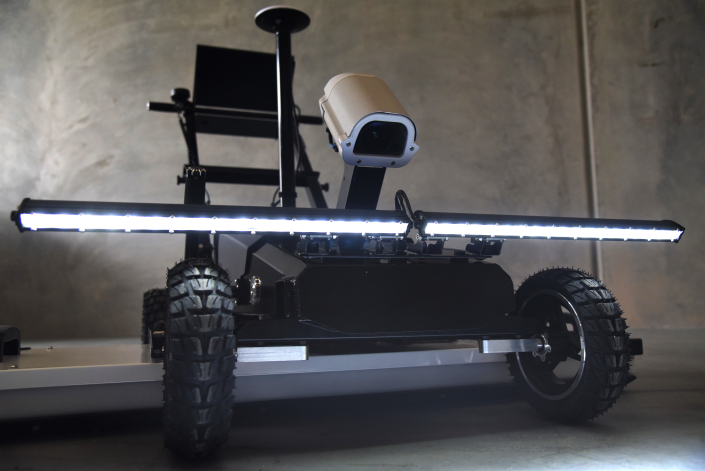

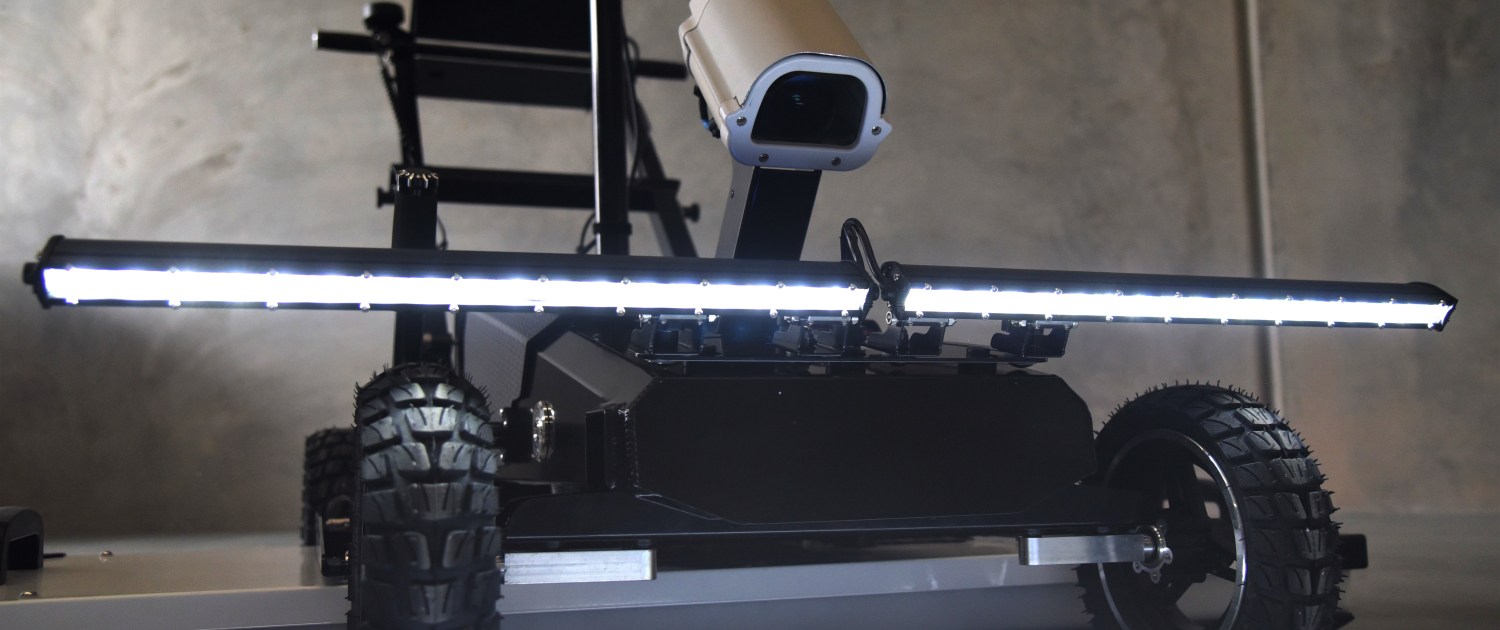

      • Linescan surface imaging camera + lighting array
      • Area/ROW cameras (3x max.)
      • LiDAR
  • Basic configuration:
    • 3D NM-GPR array (incl. digitiser)
    • Push frame, side wheels, encoder & RTK-GNSS or grid positioning
    • BYO Windows PC (ethernet connection required)
  • Standard or compact batteries
